G102B

• Product Features

  UMTS, LTE Band
  PCB Soldering Re-flow
  Wide Operation Temperature Range -45 ~ 125℃
  Compact Package Design for PCB Applications en

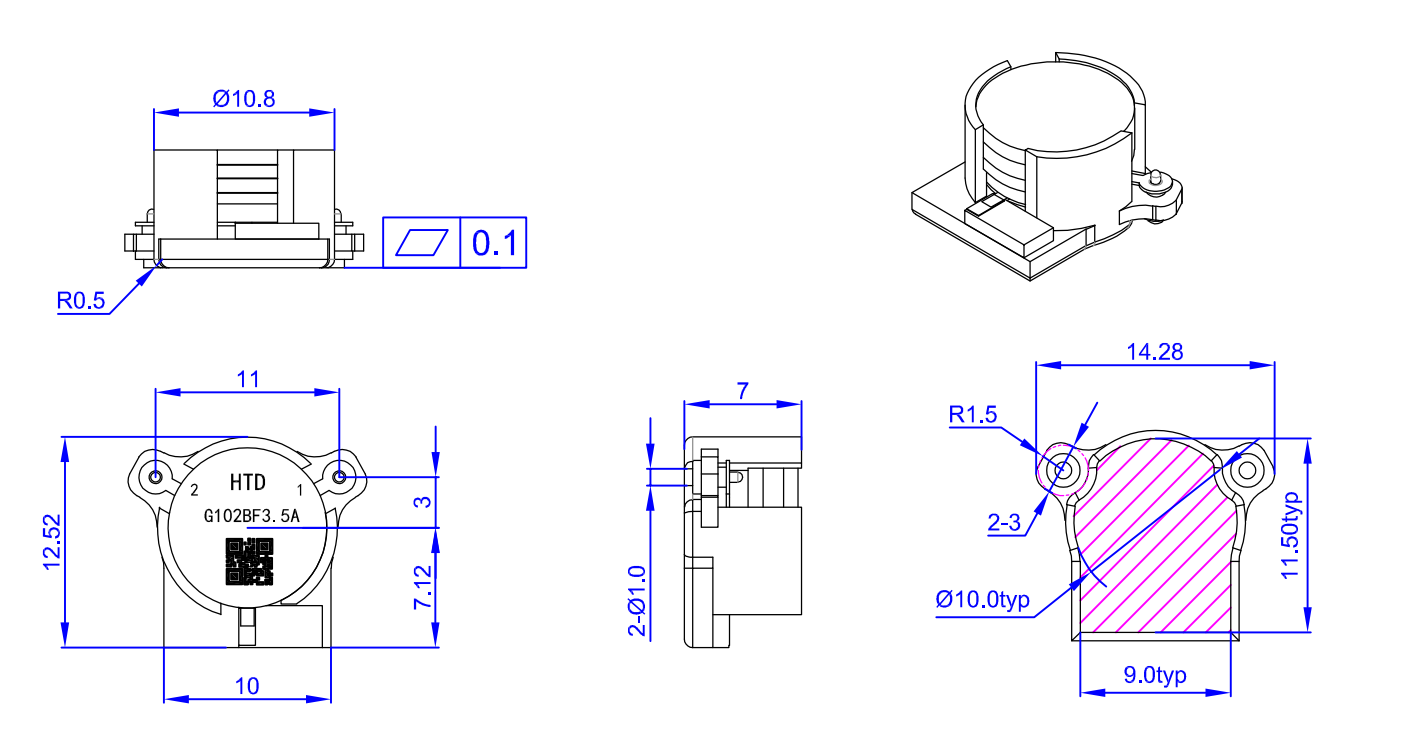

• Size Display



• Specification Parameters

  Model		Frequency（GHz） F1	Frequency（GHz） F2	Center Frequency (GHz)	Bandwidth （GHz）	Isolation （dB）MIN	INS LOSS （dB）MAXen	VSWR MAX	Power (W)	IMD (@2X43dBm) (-dBc)MAX
  G102BF2.6G											2.456	2.730	2.5930	0.274	20	0.35	1.17	20	-72
  G102BZ2G		1.980	2.010	1.9950	0.030	23	0.3	1.15	20	-65
  G102BF1.8-2.1G		1.805	2.170	1.9875	0.365	17	0.55	1.33	20	-50
