G6A
-
Product Features
UMTS, LTE ，5G NR Band
PCB Soldering Re-flow
Wide Operation Temperature Range -45 ~ 105℃
Compact Package Design for PCB Applications -

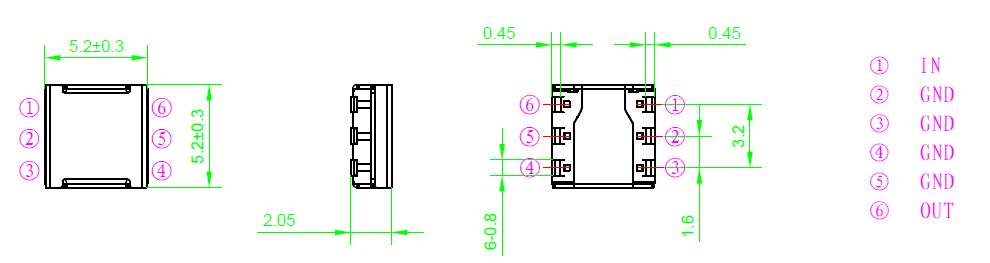

Size Display
-
Specification Parameters
Model
Frequency (MHz)
F1Frequency (MHz)
F2Center Frequency
(MHz)Bandwidth
(MHz)Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXG6A009 4800.0 5000.0 4900.0 200.0 16 0.80 16 10 -55 G6A008 3400.0 3600.0 3500.0 200.0 16 0.80 16 10 -55 G6A007 2496.0 2690.0 2593.0 194.0 16 0.60 16 10 -55 G6A006 2300.0 2400.0 2350.0 100.0 16 0.60 16 10 -55 G6A005 2110.0 2170.0 2140.0 60.0 18 0.50 18 10 -55 G6A004 1805.0 1880.0 1842.5 75.0 18 0.50 18 10 -55 G6A003 925.0 960.0 942.5 35.0 15 0.80 15 10 -50 G6A002 859.0 894.0 876.5 35.0 15 0.80 15 10 -50 G6A001 758.0 803.0 780.5 45.0 15 1.00 15 10 -50
