HYH838A
-
Product Features
UMTS, LTE Band
Wide Operation Temperature Range -40 ~ +85℃ -

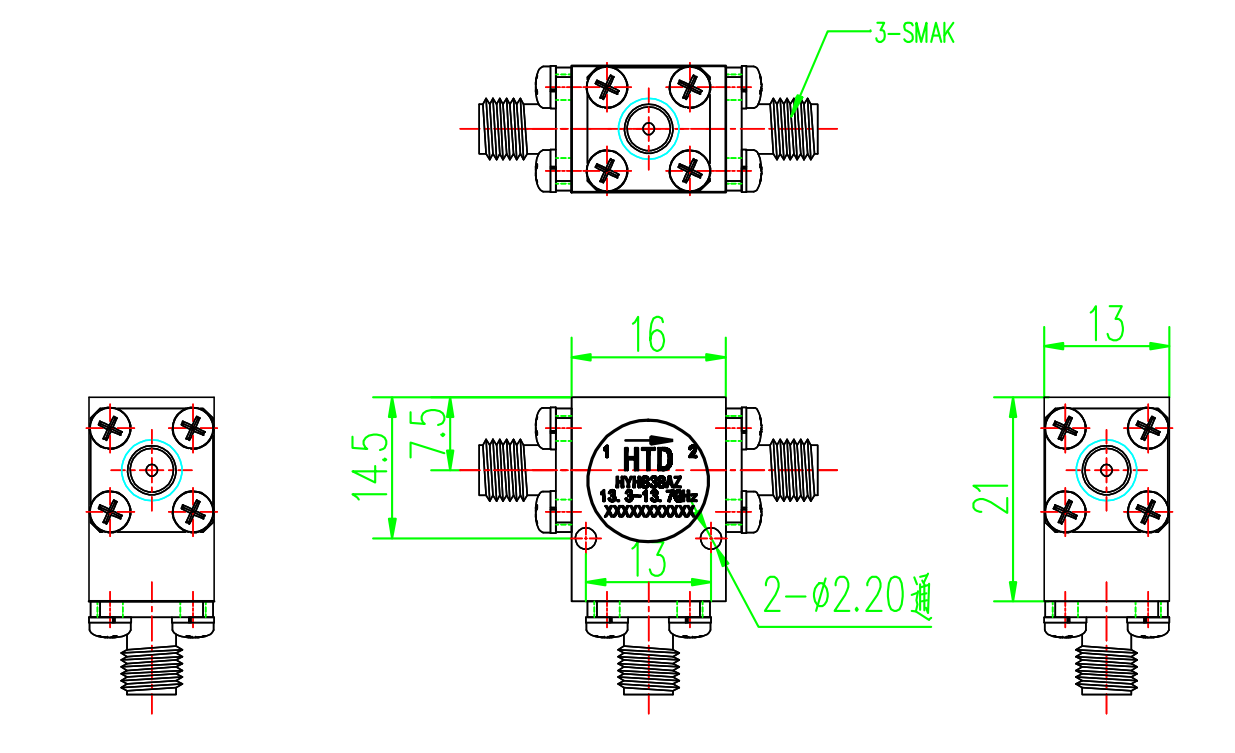

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXHYH838AZ[10-15GHz] 10.000 15.000 12.5000 5.000 20 0.4 1.25 10 - HYH838AZ[8-12GHz] 8.000 12.000 10.0000 4.000 20 0.4 1.25 10 - HYH838AZ[7.7-8.5GHz] 7.700 8.500 8.1000 0.800 20 0.3 1.25 10 - HYH838AZ[7.1-7.9GHz] 7.100 7.900 7.5000 0.800 20 0.3 1.25 10 - HYH838AZ[6.4-7.2GHz] 6.400 7.200 6.8000 0.800 20 0.3 1.25 10 - HYH838AZ[5.6-6.5GHz] 5.600 6.500 6.0500 0.900 20 0.3 1.25 10 -
