H524C
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40 ~ 85℃
Compact Package Design for PCB Applications -

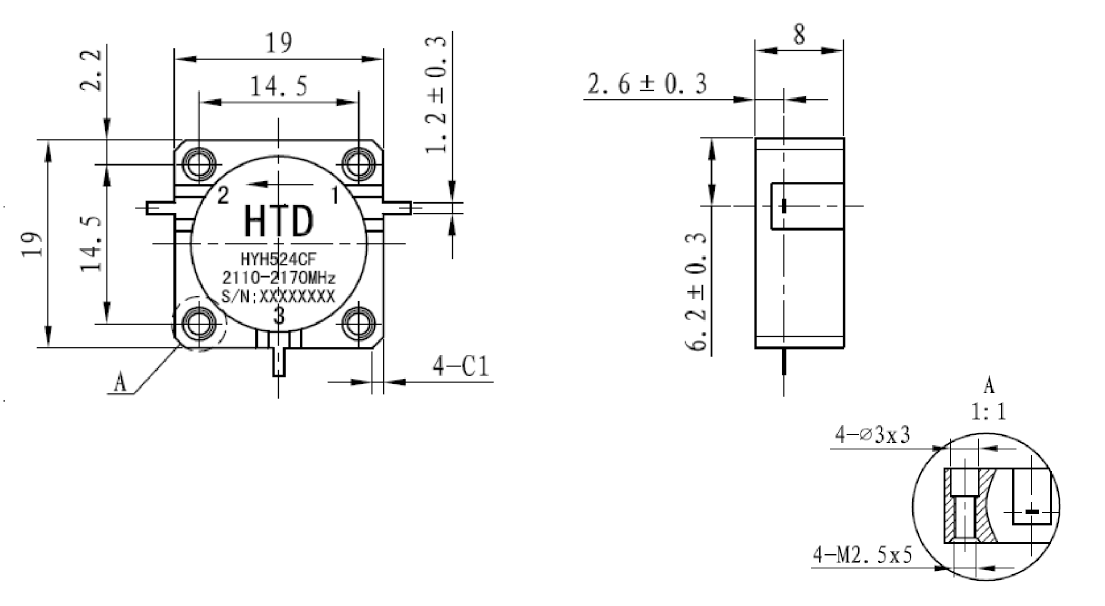

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXH524C[4750-5100]MHz 4.750 5.100 4.925 0.350 22 0.35 1.2 10 - H524C[4100-4400]MHz 4.100 4.400 4.250 0.300 22 0.4 1.2 30 - H524C[3400-3800]MHz 3.400 3.800 3.600 0.400 23 0.25 23 100 - H524C[2500-2700]MHz 2.500 2.700 2.600 0.200 23 0.25 1.15 100 - H524C[2555-2655]MHz 2.555 2.655 2.605 0.100 23 0.25 1.17 100 - H524C[2300-2700]MHz 2.300 2.700 2.500 0.400 20 0.4 1.22 150 - H524C[2300-2400]MHz 2.300 2.400 2.3500 0.100 23 0.25 1.17 150 - H524C[2110-2170]MHz 2.110 2.170 2.1400 0.060 23 0.25 1.17 150 - H524C[1840-1920]MHz 1.840 1.920 1.8800 0.080 23 0.25 1.17 150 - H524C[1805-1920]MHz 1.805 1.920 1.8625 0.115 23 0.28 1.17 150 -
