H543E

• Product Features

  UMTS, LTE Band
  PCB Soldering Re-flow
  Wide Operation Temperature Range -40 ~ 85℃
  Compact Package Design for PCB Applications

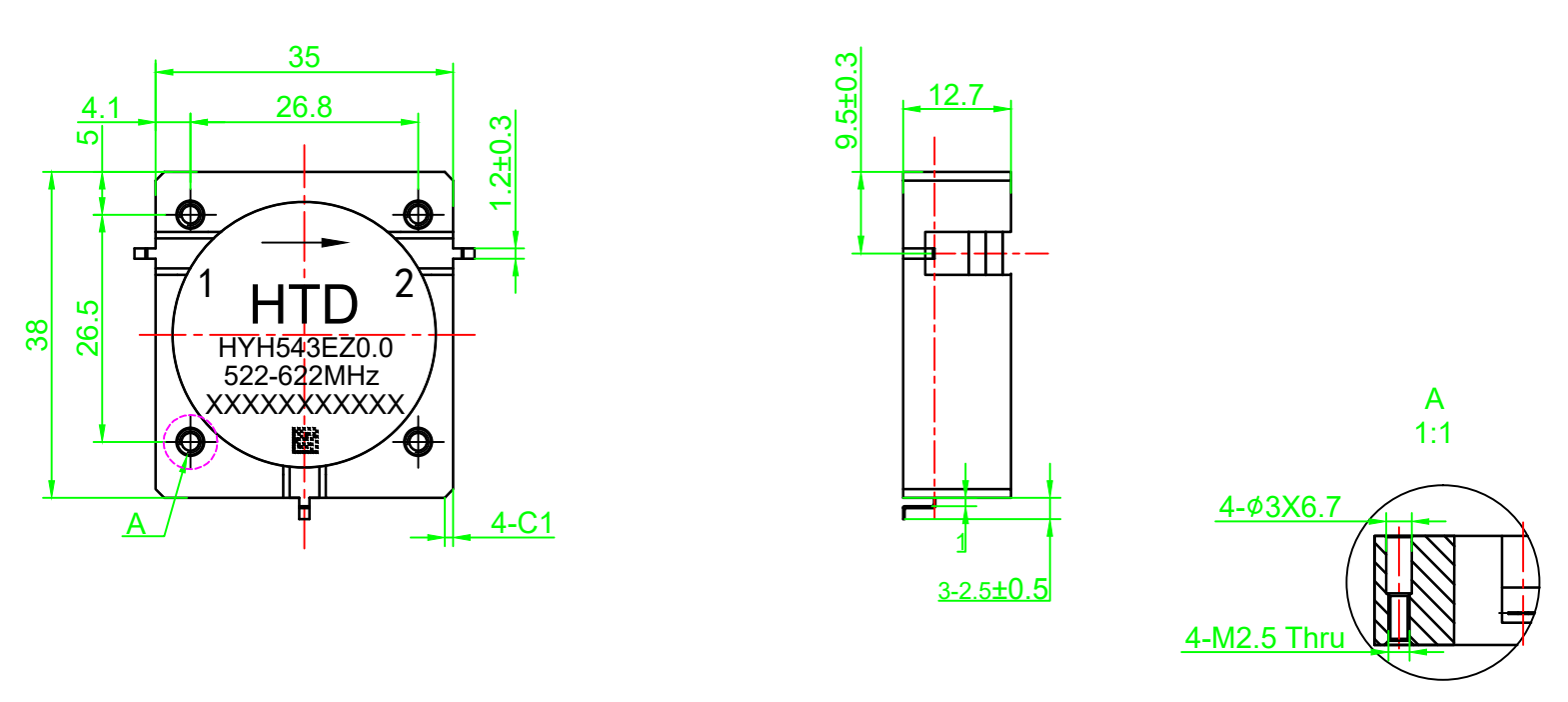

• Size Display



• Specification Parameters

  Model		Frequency（GHz） F1	Frequency（GHz） F2	Center Frequency (GHz)	Bandwidth （GHz）	Isolation （dB）MIN	INS LOSS （dB）MAXen	VSWR MAX	Power (W)	IMD (@2X43dBm) (-dBc)MAX
  H543E [698-940]MHz											0.698	0.940	0.8190	0.242	18	0.4	1.28	100	-
  H543E [500-650]MHz		0.500	0.650	0.5750	0.150	18	0.45	1.28	100	-
  H543E [470-570]MHz		0.470	0.570	0.5200	0.100	20	0.4	1.2	200	-
  H543E [400-430]MHz		0.400	0.430	0.4250	0.030	22	0.25	1.17	200	-
  H543E [330-350]MHz		0.330	0.350	0.340	0.020	20	0.45	1.22	100	-
