G502A
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40 ~ 85℃
Compact Package Design for PCB Applications -

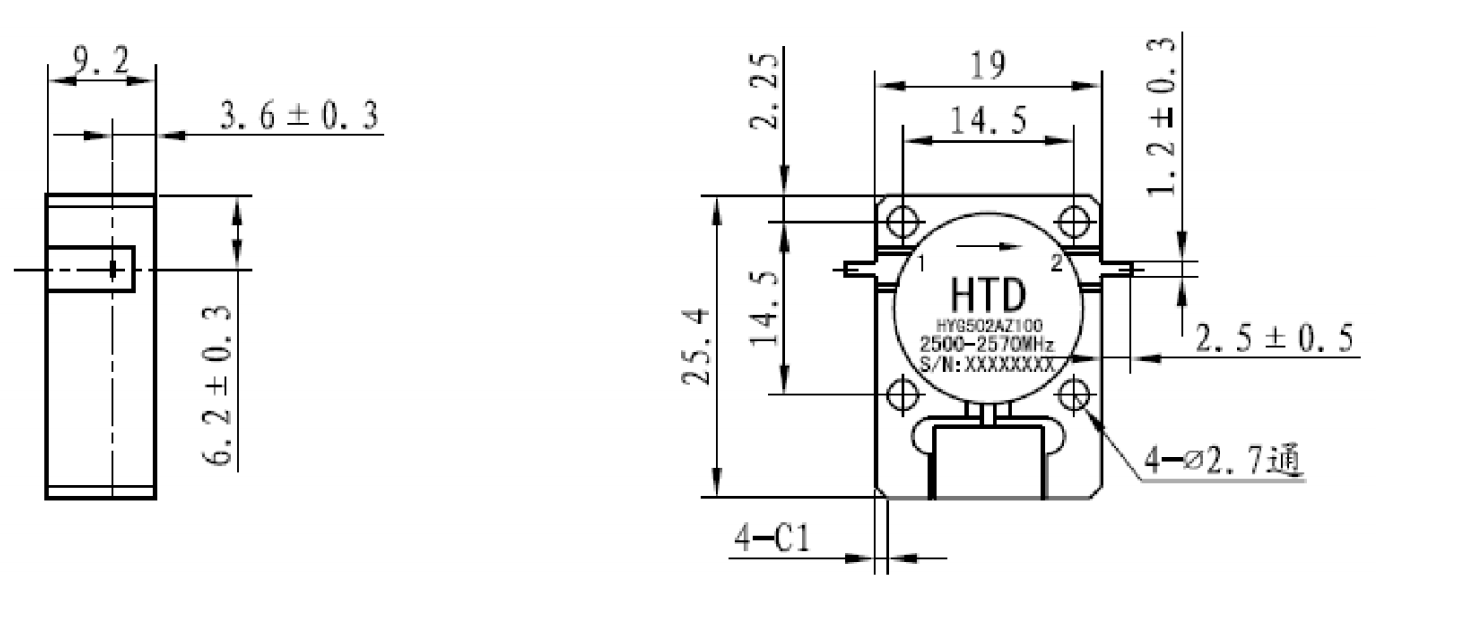

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXG502A[3400-4200]MHz 3.400 4.200 3.800 0.800 15 0.45 1.4 150 - G502A[3100-3500]MHz 3.100 3.500 3.3000 0.400 20 0.35 1.2 100 - G502A[2555-2660]MHz 2.555 2.660 2.6075 0.105 22 0.25 1.17 150 -65 G502A[2300-2400]MHz 2.300 2.400 2.3500 0.100 22 0.25 1.17 150 -65 G502A[2100-2200]MHz 2.100 2.200 2.1500 0.100 22 0.3 1.2 150 - G502A[2000-2500]MHz 2.000 2.500 2.2500 0.500 18 0.4 1.3 150 - G502A[1805-1880]MHz 1.805 1.880 1.8375 0.075 23 0.25 1.17 150 - G502A[1800-2200]MHz 1.800 2.200 2.0000 0.400 22 0.3 1.2 100 - G502A[1689-1710]MHz 1.689 1.710 1.6995 0.021 23 0.2 1.15 150 - G502A[1600-1630]MHz 1.600 1.630 1.6150 0.030 23 0.25 1.15 150 - G502A[925-960]MHz 0.925 0.960 0.943 0.035 22 0.3 1.17 150 -
