G503A
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40 ~ 85℃
Compact Package Design for PCB Applications -

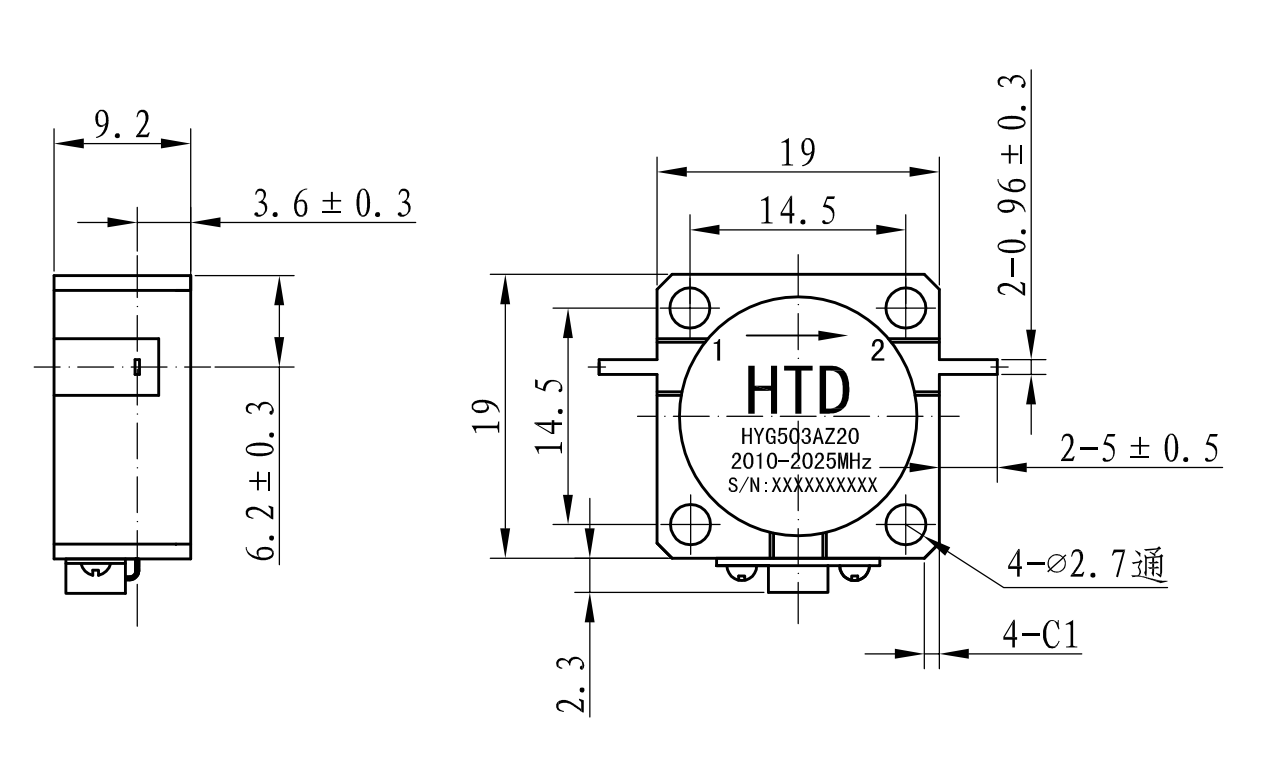

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXG503A[2620-2690]MHz 2.620 2.690 2.6550 0.070 23 0.25 1.17 60 - G503A[2110-2170]MHz 2.110 2.170 2.1400 0.060 23 0.25 1.17 60 - G503A[2010-2025]MHz 2.010 2.025 2.0170 0.015 25 0.25 1.17 60 - G503A[1930-1990]MHz 1.930 1.990 1.9600 0.060 23 0.25 1.17 60 - G503A[1920-1980]MHz 1.920 1.980 1.9500 0.060 23 0.25 1.17 60 - G503A[1880-1920]MHz 1.880 1.920 1.9000 0.040 25 0.25 1.15 100 - G503A[1805-1880]MHz 1.8075 1.8375 1.8375 0.075 25 0.25 1.15 60 - G503A[1710-1785]MHz 1.710 1.785 1.7475 0.075 23 0.25 1.17 60 - G503A[925-960]MHz 0.925 0.960 0.943 0.035 22 0.3 1.17 60 -
