G505A
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40 ~ 125℃
Compact Package Design for PCB Applications -

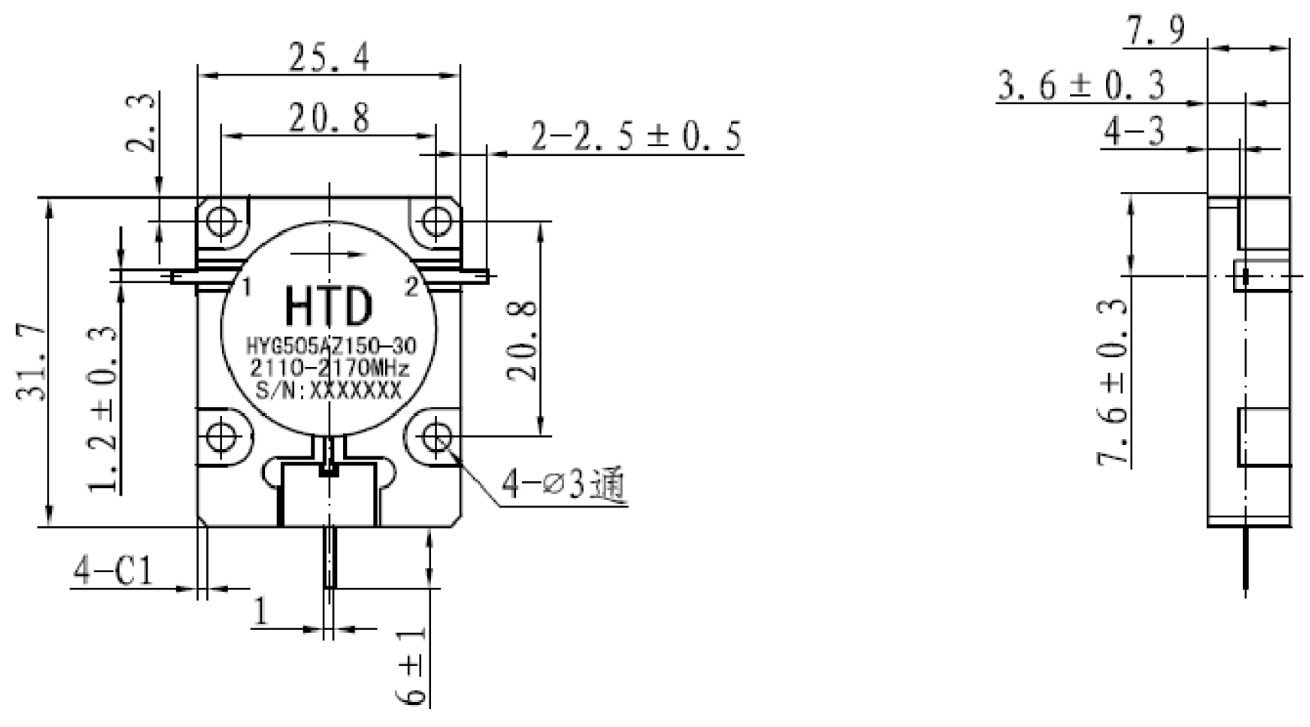

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXG505A[2110-2170]MHz 2.110 2.170 2.1400 0.060 23 0.25 1.15 100 - G505A[1930-1990]MHz 1.930 1.990 1.9600 0.060 25 0.2 1.15 100 - G505A[1920-1980]MHz 1.920 1.980 1.9500 0.060 25 0.2 1.15 100 - G505A[1805-1880]MHz 1.805 1.880 1.8375 0.075 25 0.25 1.15 150 - G505A[1800-1950]MHz 1.800 1.950 1.8750 0.150 22 0.3 1.17 150 - G505A[925-960]MHz 0.925 0.960 0.943 0.035 25 0.25 1.15 100 - G505A[869-894]MHz 0.869 0.894 0.882 0.025 23 0.325 1.15 150 -65 G505A[840-925]MHz 0.840 0.925 0.883 0.085 23 0.3 1.15 150 -
