G110A

• Product Features

  UMTS, LTE Band
  PCB Soldering Re-flow
  Wide Operation Temperature Range -45 ~ 125℃
  Compact Package Design for PCB Applications

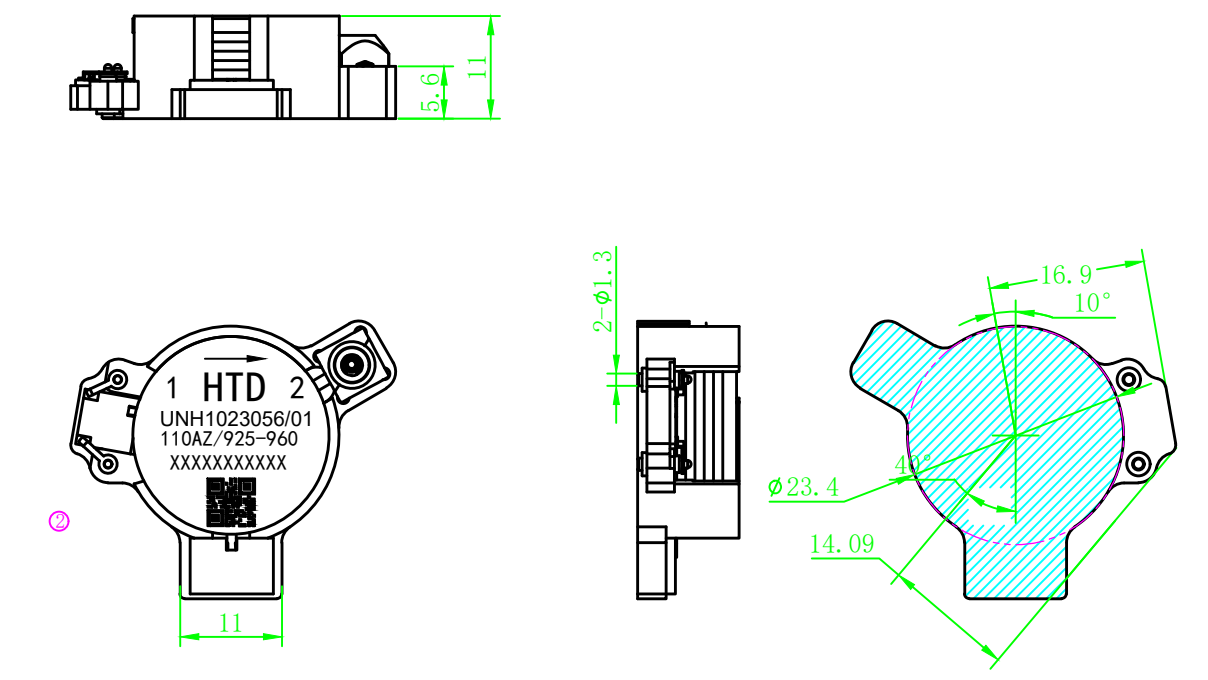

• Size Display



• Specification Parameters

  Model		Frequency（GHz） F1	Frequency（GHz） F2	Center Frequency (GHz)	Bandwidth （GHz）	Isolation （dB）MIN	INS LOSS （dB）MAXen	VSWR MAX	Power (W)	IMD (@2X43dBm) (-dBc)MAX
  HYH110AZ100/2496-2690MHz											2496	2690	2593	194	22	0.25	-	80	-69
  HYH110AZ100/2300-2400MHz		2300	2400	2350	100	22	0.25	-	80	-69
  HYG110AZ100/2620-2690MHz		2620	2690	2655	70	22	0.20	-	80	-69
  HYG110AZ100/2110-2200MHz		2110	2200	2155	90	22	0.20	-	80	-69
  HYG110AZ100/1930-2020MHz		1930	2020	1975	90	22	0.20	-	80	-69
  HYG110AZ100/1805-1880MHz		1805	1880	1843	75	22	0.20	-	80	-69
  HYG110AZ100/925-960MHz		925	960	943	35	22	0.25	-	80	-69
  HYG110AZ100/791-821MHz		791	821	806	30	22	0.25	-	80	-65
